AC WALL MOUNT 48A EV CHARGER 5" DISPLAY 16.4FT CABLE SAEJ1772 PLUG
SKU EVC48
by RAB
Original price
$2,215.00
Original price
$2,215.00
-
Original price
$2,215.00
Original price
$2,215.00
Current price
$2,215.00
$2,215.00
-
$2,215.00
Current price
$2,215.00
- 16ft. cable length
- 48A Output
- Over current protection
- Over/under voltage protection
- Operating temperatures of -22°F to 131°F (-30°C to 55°C)
- Suitable for outdoor use: NEMA Type 4, IP65 rating
- Will function properly at altitudes up to 6500 ft
- Vandal resistant, IK08 rating
- CCID20 leakage protection
- Authentication Method: Smart Phone App, ISO 15118, RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™, MIFARE)

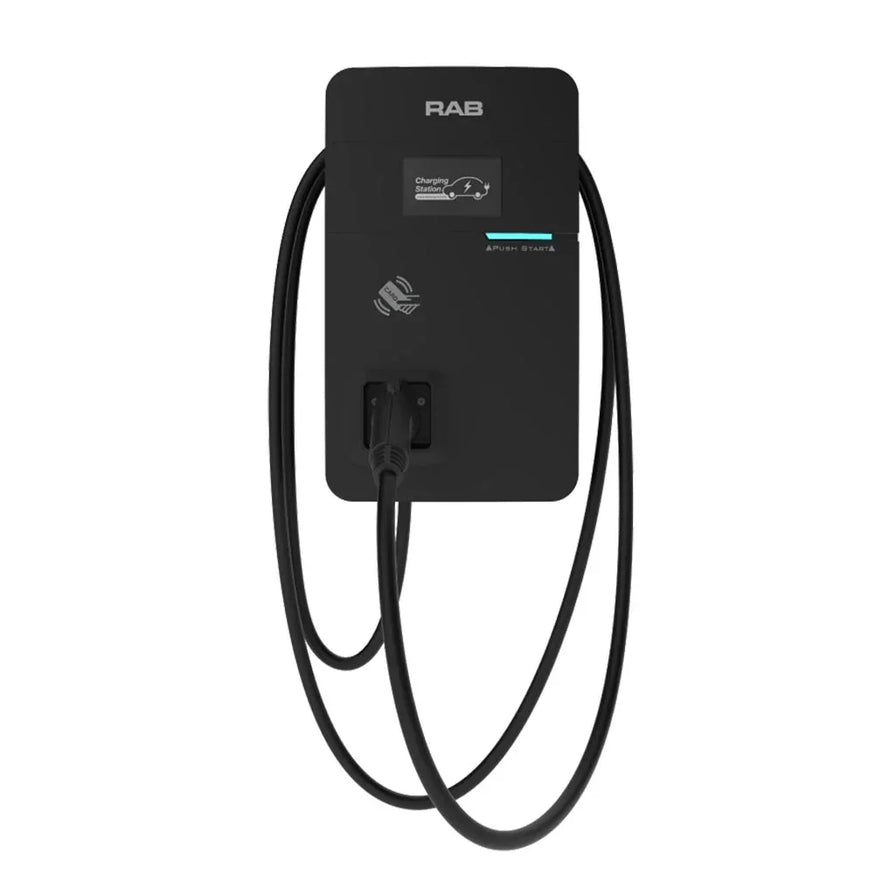

The EVC48 is a high-power, Level 2 electric vehicle charger designed for both residential and commercial use. It’s rated for use in -22° to 122°, can be mounted to either the wall or a pedestal, and comes with a standard 16’ cable.
48A / 11.5 kw Residential/Commercial Charger: 4G networked, OCPP 1.6J protocol, 16.4' Cord, 5-inch LCD display, configurable power, and ISO 15118 protocol.
The EVC48 can be user activated via QR Code or RFID card. RAB will manage authenticating new users for you and monitor the system for issues 24/7.
Specifications
- Volts: 200-240V, Single Phase
- Amps: 48
- Operating Temperature: -22°F to 131°F (-30°C to + 55°C)
Compliance
- Energy Star rated: yes
- RoHS Compliant: yes
- FCC Compliant: yes
Additional Info
- Warranty: 3 years
